PHE Gasket Manufacturers & Supplier in India

A PHE gasket is the elastomer (rubber) sealing gasket fitted between the plates of a plate heat exchanger. It seals the gaps between plates, directs fluid flow, and prevents the two media from mixing or leaking. PHE gaskets are made from materials such as NBR, EPDM, HNBR, and Viton.

As trusted PHE gasket manufacturers and suppliers in India, Thermocare Boilers Pvt Ltd (TBPL) provides high-quality replacement plate heat exchanger gaskets compatible with all major makes and models. With 25+ years in industrial heating and cooling, we supply durable, leak-tight gaskets in NBR, EPDM, HNBR, and Viton for maintenance and emergency breakdown needs across India and export markets.

What Is a PHE Gasket?

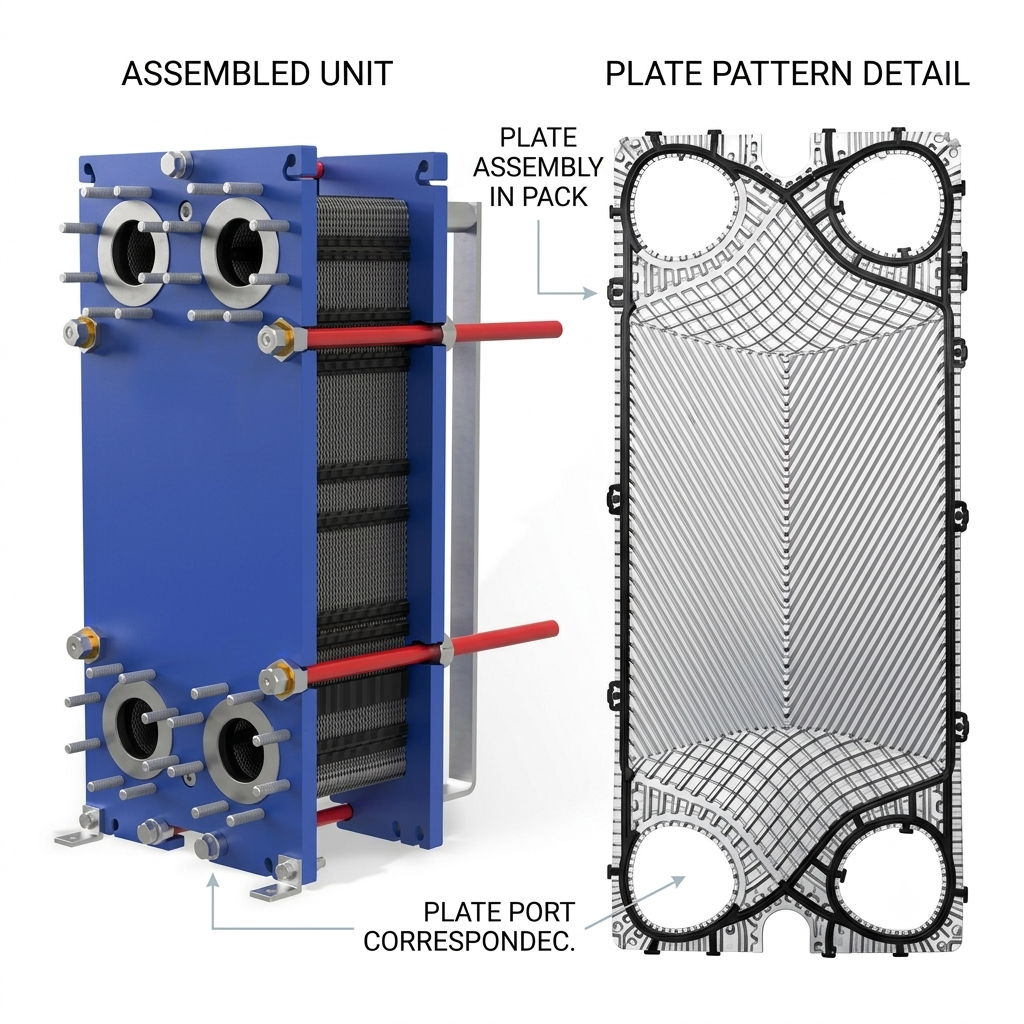

A PHE gasket (plate heat exchanger gasket) is an elastomeric sealing component that sits in the groove around each plate in a gasketed plate heat exchanger. It performs three critical jobs: it seals the gap between adjacent plates, it directs each fluid into the correct channel, and it keeps the hot and cold media completely separate so they never mix.

Because PHE gaskets work under high pressure, high temperature, and aggressive process fluids, the elastomer gradually degrades over time. Worn or hardened gaskets lead to leaks, cross-contamination, and unplanned downtime — which is why timely gasket replacement with the correct material is essential to keep a plate heat exchanger running at peak efficiency.

Functions of a Plate Heat Exchanger Gasket

Sealing – prevents external leakage of process fluids
Flow direction – guides each medium into the right channel
Separation – keeps the two fluids from mixing

Compression – maintains the correct plate-pack gap for thermal performance

Types of PHE Gaskets We Supply

By Position in the Plate Pack

Channel plate gaskets – the main sealing gaskets on the internal plates
End plate gaskets – seal the first and last plates against the frame

Port / connection (frame) gaskets – seal around the inlet and outlet ports

By Attachment Method

Clip-on gaskets – use moulded tabs or locking features to fit without adhesive; fast to install and replace, ideal for routine maintenance
Glue-on (glued) gaskets – bonded to the plate with adhesive for strong sealing integrity and long-term stability in harsh, high-pressure, or high-vibration service
Snap-on / Loc-in types – clip designs supplied to match your specific plate model

We supply gaskets as gaskets-only or as complete gasketed plate sets, with OEM cross-reference to your existing part numbers for an exact fit.

PHE Gasket Materials & Selection Guide

Choosing the right elastomer is the single most important factor in gasket life. Selection depends on operating temperature, the process fluid, and any hygiene requirements.

Gasket Material	Best For	Approx. Max Temp
NBR (Nitrile)	Water, oils, mineral fluids	up to ~110–140°C
EPDM	Hot water, steam, mild chemicals	up to ~150–170°C
EPDM HT	High-temperature steam & water	up to ~180°C
HNBR	Oil, water + steam, crude oil PHE	up to ~165°C
Viton / FKM (Viton G)	Aggressive chemicals, high heat, oils	up to ~200°C+

(Temperatures are indicative and depend on the specific compound and pressure; structured to win a material-selection featured snippet.)

Food-grade / FDA options: For dairy, food, beverage, and pharmaceutical duties, we supply FDA-compliant food-grade NBR and EPDM gaskets suitable for sanitary plate heat exchangers and pasteurizers.

How to Choose the Right PHE Gasket

Consider the operating temperature, chemical compatibility with the process fluid, pressure cycling, cleaning protocol (CIP/SIP), and any industry hygiene standards. When in doubt, share your plate model and duty — our team will recommend the correct material and attachment type.

PHE Gasket Compatibility

We supply replacement gaskets engineered to match the specifications of most major plate heat exchanger makes and models. Whatever brand or model of gasketed plate heat exchanger you operate, we can cross-reference your requirement and supply a precise-fit replacement gasket.

Our aftermarket gaskets are built for 100% compatibility with original equipment dimensions, giving you an exact fit at competitive pricing. Simply provide your model number, gasket dimensions, or a sample — and we will cross-reference and supply the exact gasket you need.

Why Choose Thermocare Boilers as Your PHE Gasket Manufacturer & Supplier

With 25+ years of expertise in industrial heating and cooling, Thermocare Boilers Pvt Ltd is a trusted name for heat exchanger equipment and spares in India. As PHE gasket manufacturers and suppliers, we offer:

Full material range – NBR, EPDM, EPDM HT, HNBR, and Viton
Compatibility with all major makes and models of gasketed plate heat exchangers
Clip-on and glue-on attachment types to match your plates
FDA food-grade options for sanitary and pharma duties
OEM cross-referencing for an exact replacement fit
Fast supply for planned maintenance and emergency breakdowns
End-to-end support backed by our Annual Maintenance Contracts

Supplied across India and to international markets, our PHE gaskets keep your plate heat exchangers sealed, efficient, and running.

Industries We Serve

Dairy, Food & Beverage – FDA food-grade EPDM/NBR gaskets
Pharmaceutical – sanitary, CIP/SIP-compatible gaskets
Chemical & Petrochemical – Viton and HNBR for aggressive media
Power Generation – EPDM HT and Viton G for high-temperature steam
HVAC & Cooling – NBR/EPDM for water and refrigerant duties

Edible Oil & Process Industries – oil-resistant gasket compounds

Frequently Asked Questions

What is a PHE gasket?

A PHE gasket is the rubber (elastomer) sealing gasket fitted between the plates of a plate heat exchanger. It seals the gap between plates, directs fluid flow, and stops the two media from mixing or leaking

Who are reliable PHE gasket manufacturers and suppliers in India?

Thermocare Boilers Pvt Ltd is a trusted PHE gasket manufacturer and supplier in India, providing replacement plate heat exchanger gaskets in NBR, EPDM, HNBR, and Viton compatible with all major models, with fast supply and OEM cross-referencing.

What materials are PHE gaskets made from?

Common PHE gasket materials are NBR (nitrile), EPDM, EPDM HT, HNBR, and Viton (FKM). The choice depends on the operating temperature, process fluid, and any food-grade or hygiene requirements.

What is the difference between clip-on and glue-on PHE gaskets?

Clip-on gaskets fit using moulded tabs without adhesive and are quick to install and replace. Glue-on gaskets are bonded to the plate with adhesive, offering stronger sealing and durability in high-pressure or high-vibration service but taking longer to change.

Which PHE gasket material is best for high temperature?

For high-temperature steam and water, EPDM HT is commonly used, while Viton (FKM) / Viton G is preferred for very high temperatures and aggressive chemicals. HNBR suits oil and steam duties up to around 165°C.

Are food-grade PHE gaskets available?

Yes. We supply FDA-compliant food-grade NBR and EPDM gaskets for dairy, food, beverage, and pharmaceutical plate heat exchangers and pasteurizers.

Are your gaskets compatible with all plate heat exchanger models?

Yes. We supply replacement gaskets engineered to match most major plate heat exchanger makes and models. Provide your model number or a sample and we will cross-reference the exact gasket.

Do you supply OEM or aftermarket PHE gaskets?

We supply high-quality aftermarket gaskets engineered for 100% compatibility with original equipment dimensions, plus OEM cross-referencing so you get an exact replacement fit at competitive pricing.

How often should PHE gaskets be replaced?

Gaskets should be replaced when they show signs of hardening, cracking, compression set, or leakage, or during scheduled maintenance. Service life depends on temperature, fluid, and pressure cycling. Regular inspection helps avoid unplanned downtime.

How do I know which PHE gasket I need?

Provide your plate heat exchanger model number and the process fluid and temperature or send a sample. We will cross-reference and recommend the correct gasket type and material.
